منبع تغدیه JEFRAN -AC/DC
Regenerative active front end power suppliers-AFE200
| TECHNICAL DATA |
| AC/DC | Type |
| three-phase | Network |
| front end, external | Features |
| Max.: 690 V Min.: 400 V | Input voltage |
| Max.: 690 V Min.: 400 V | Output voltage |
| Max.: 1,650,000 W Min.: 22,000 W | Power |
Regenerative fundamental front end power suppliers-FFE200
| TECHNICAL DATA |
|
FFE200-...-4: 380Vac -15% … 500Vac +5%, 50/60Hz FFE200-... -6: 500Vac -10% … 690Vac +10%, 50/60Hz |
Power supply |
| Power Supply Uln x 1.35 | DC-link rated voltage |
|
FFE200-...-4: 300...475 kW (size 7). Up to 2.1 MW by parallel configurations. FFE200-... -6: 475...700 kW (size 7). Up to 3.4 MW by parallel configurations |
Power ratings |
|
Heavy duty: 150% for 60 sec every 300 sec Light duty: 110% for 60 sec every 300 sec |
Overload |

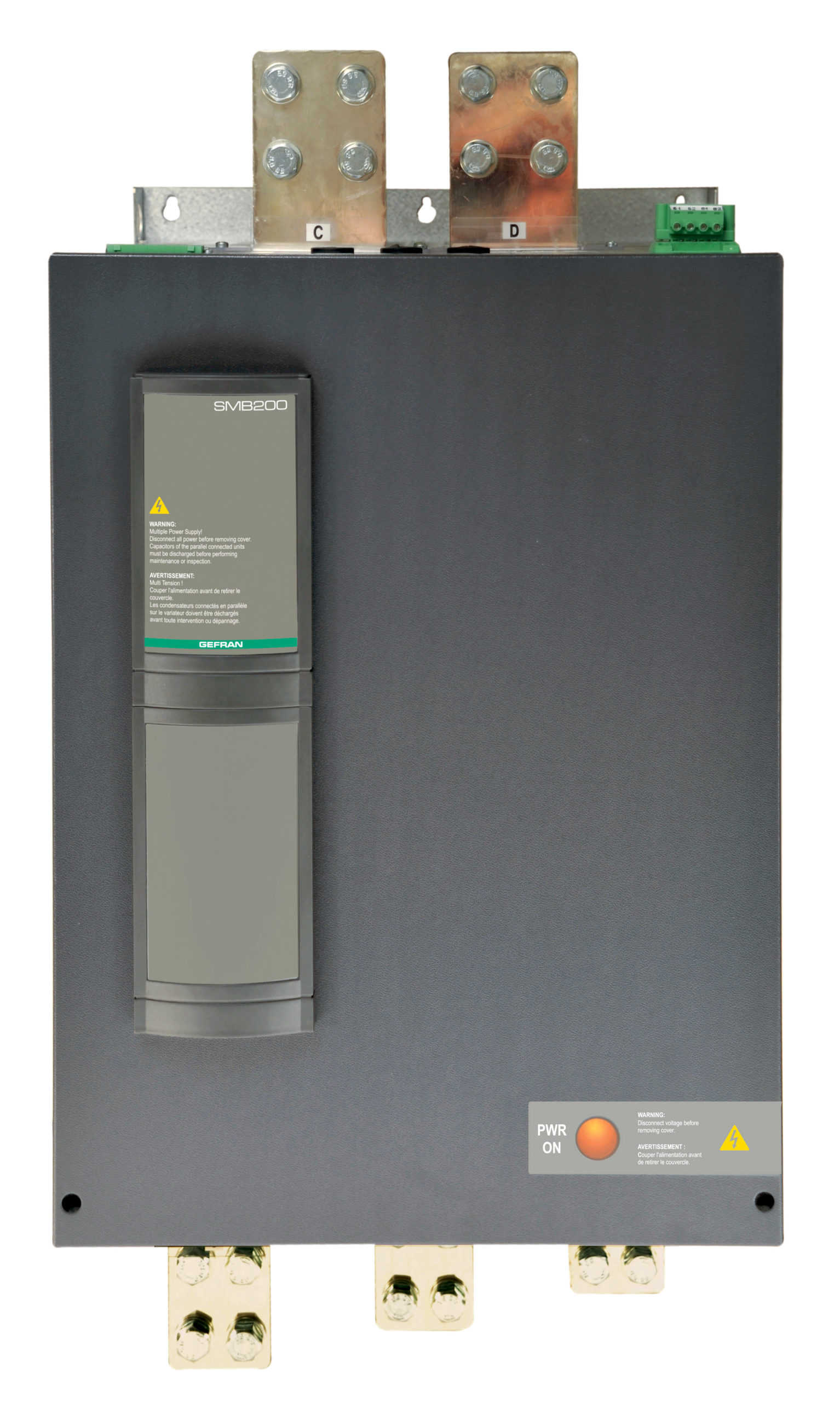

AC/DC power suppliers-SMB200

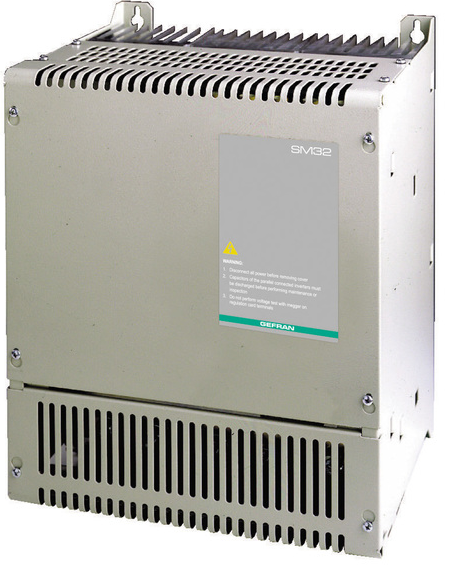

AC/DC power suppliers-SM32
